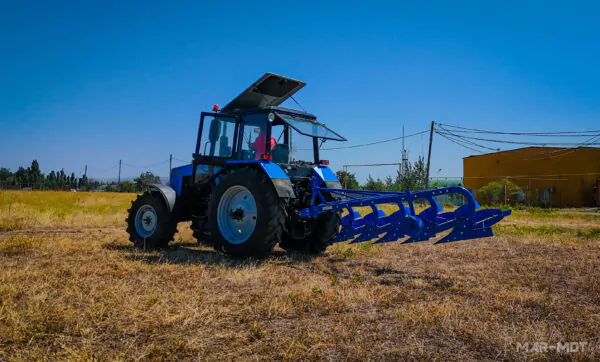

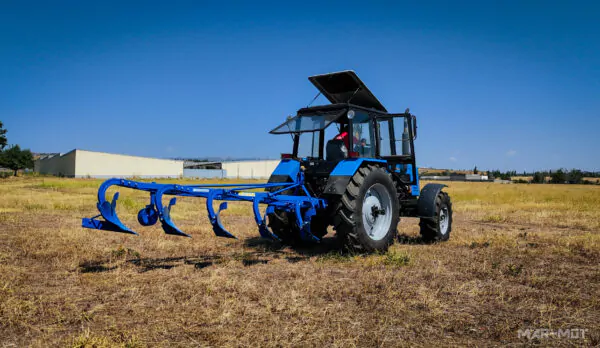

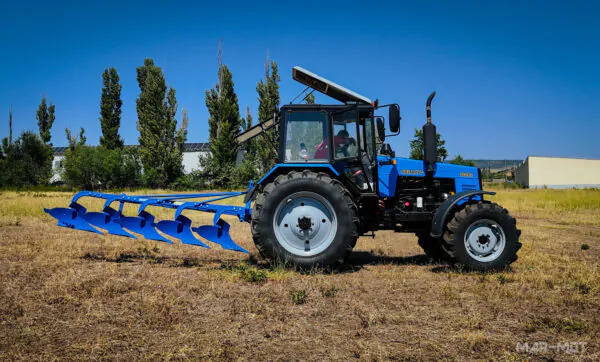

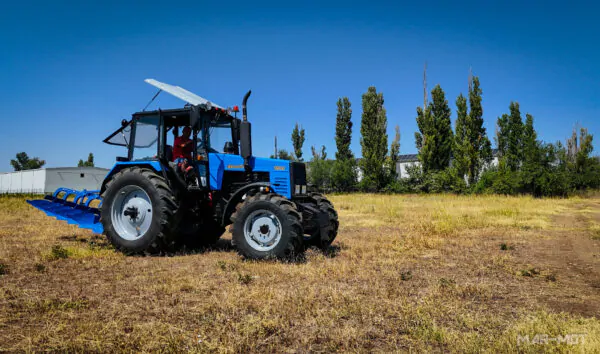

BELARUS-1221.2

In stock

The tractor is designed to perform various agricultural work with mounted, semi-mounted and trailed machines and implements, for transport work.

Features of the model

PTO drive – with hydraulically controlled friction clutch.

Leave a request

Specifications

Engine Information

Type	in-line diesel with direct injection

Model	D-260.2 (ММЗ)
Power, kW	96
Power, h.p.	130
Crankshaft rated speed, rpm	2100
Number of cylinders, pcs.	6
Displacement, l	7,12
Maximum torque, Nm	500
Specific fuel consumption at operating power, g/kWh	227
Factor of torque backup, %	15
Fuel tank capacity, l	135

Hydraulic system

Type of hydraulic system	4300
Maximum pressure, MPa	20
Pump performance,l/min	51
Hydraulic system capacity, l	28

Transmission

Clutch	dry, two-disc
Gearbox	mechanical, synchronized
Number of gears: forward/reverse	16/8
Travel speed: forward/reverse, km/h	1,5-35/2,75-16,4

Rear PTO:	continuous I, rpm	540
	continuous II, rpm	1000
	ground-speed rev/m of travel	4,87

Управление ВОМ

electro-hydraulic

Dimensions and weight

Overall length, mm.	4500
Width, mm	2300
Height to cabin top, mm	2850
Tractor base, mm	2760
Track, mm: front wheels	1540-2090 (stepped)
Track, mm: rear wheels	1530-2150
Agrotechnical clearance, mm	620
Least turning radius, m	5,4
Depth of the overcome ford, m	0,85
Operating weight, kg	5730
Tire sizes: front wheels	420/70R24
Tire sizes: rear wheels	18,4R38
Wheel arrangement	4х4

Options for additional equipment

Gearbox synchronized, speed (24/12); Mechanical creeper; Front PTO; Front hitch; Hitch hose (2 pcs.); Right-hand footboard of a cabin; Additional fuel tank.
